Don Shreve was 2005 Vern Storey Trophy Winner

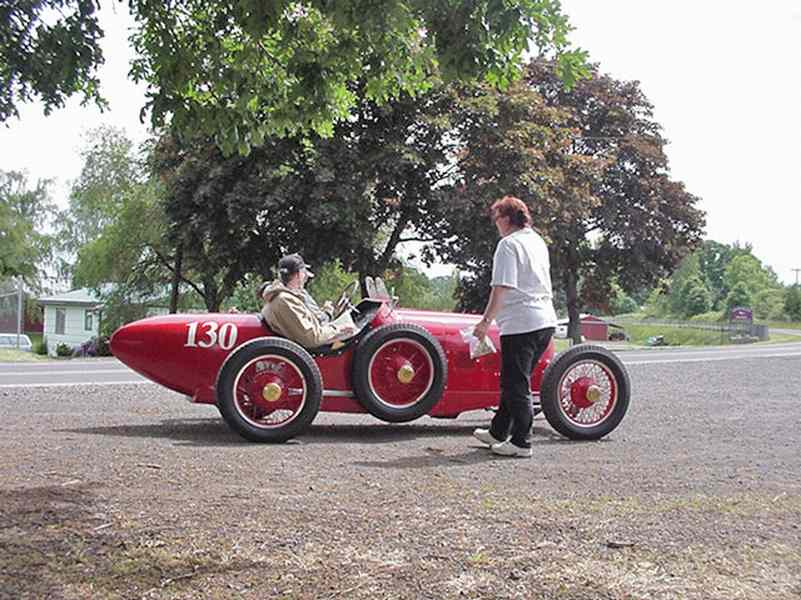

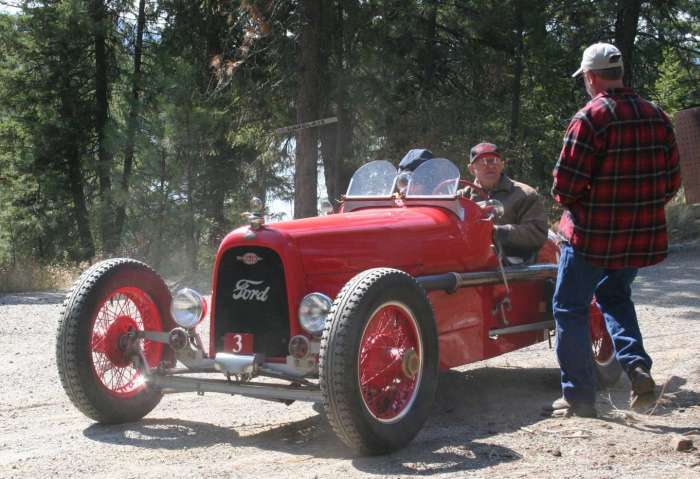

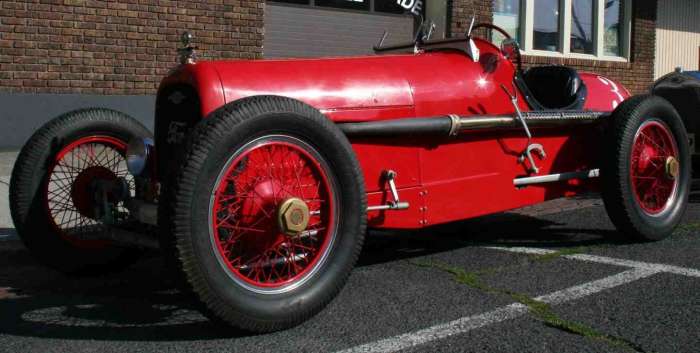

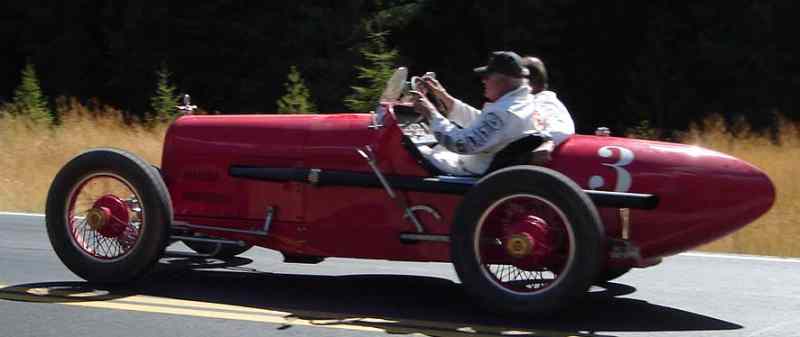

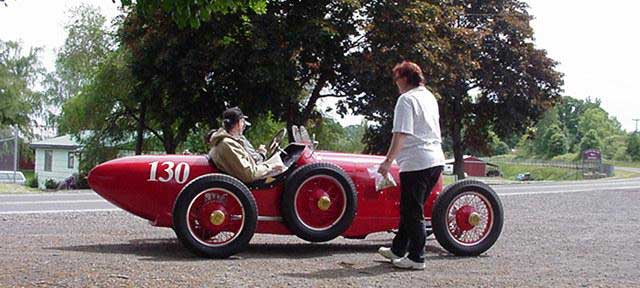

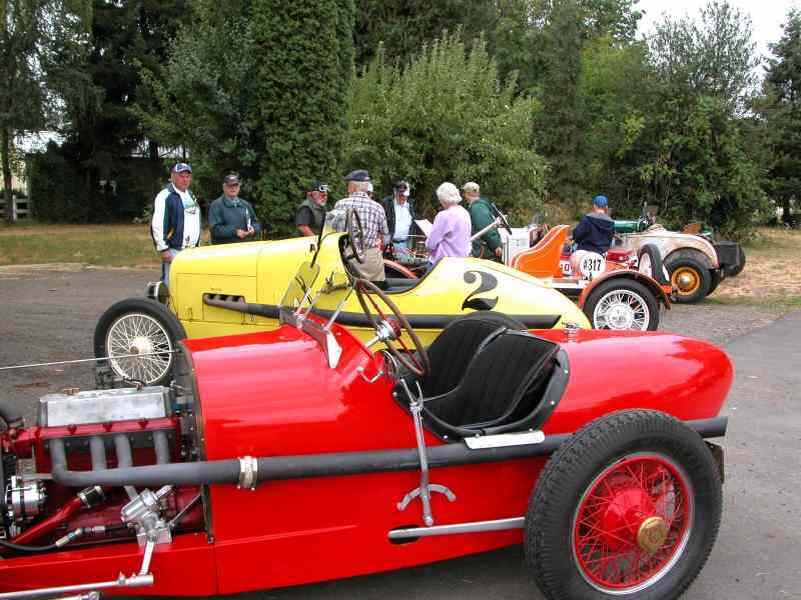

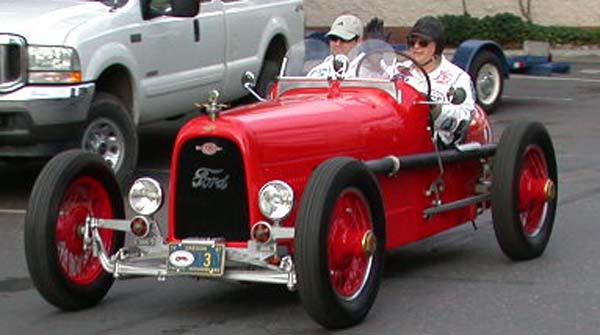

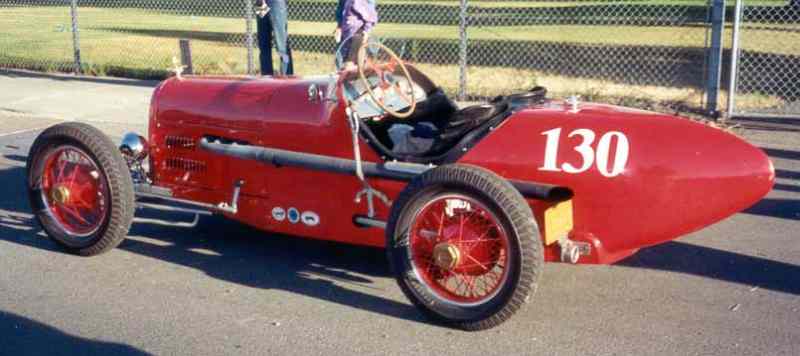

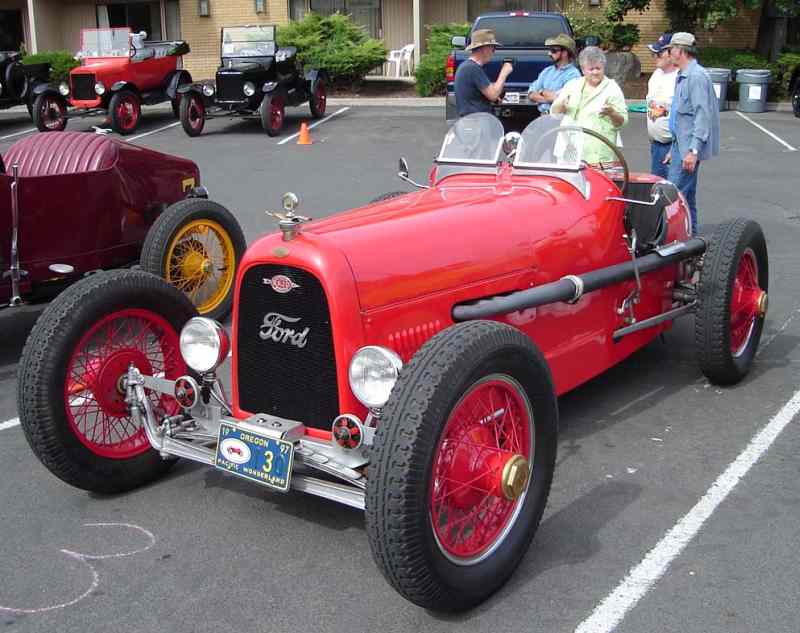

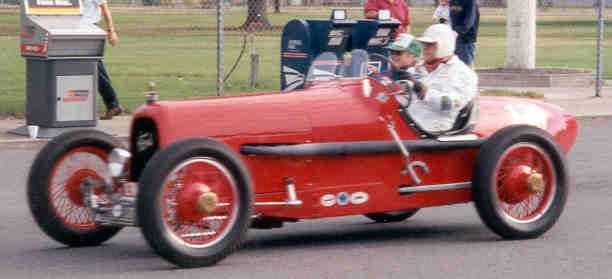

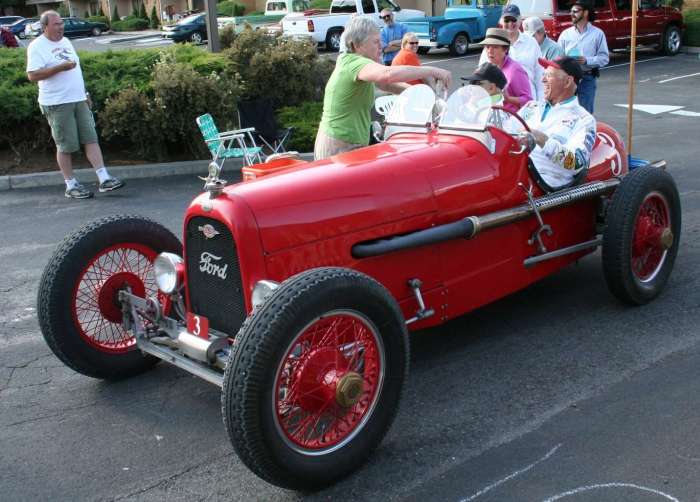

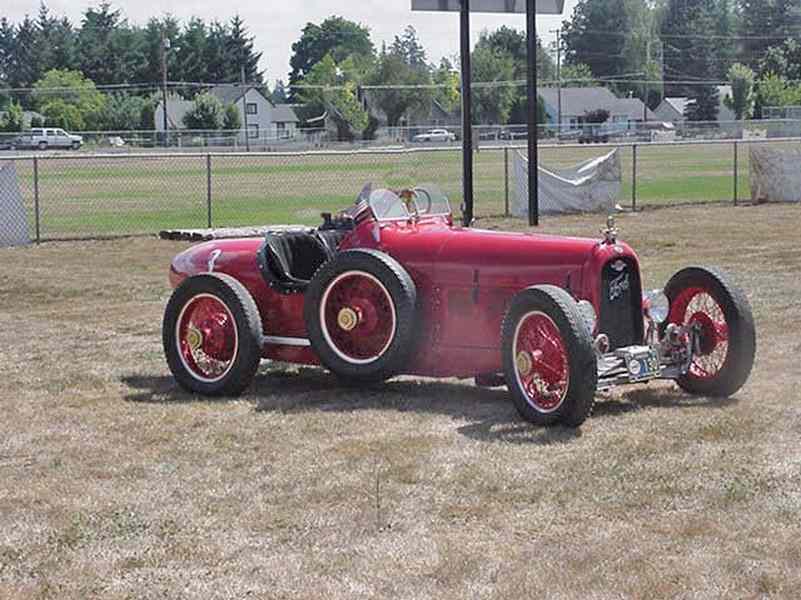

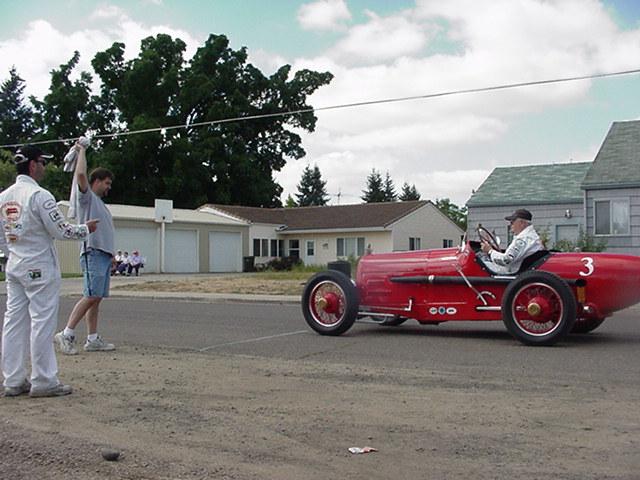

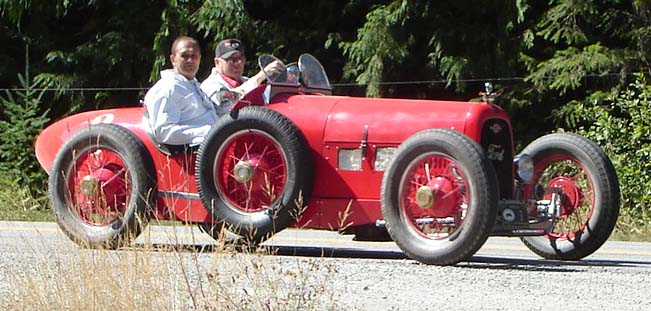

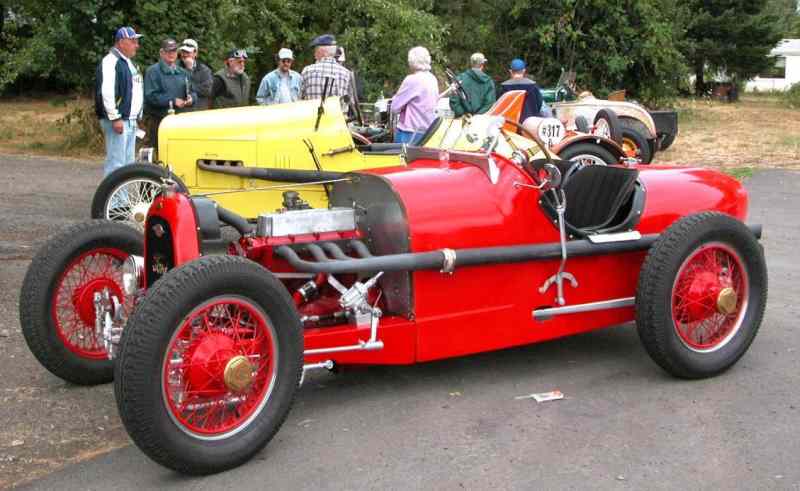

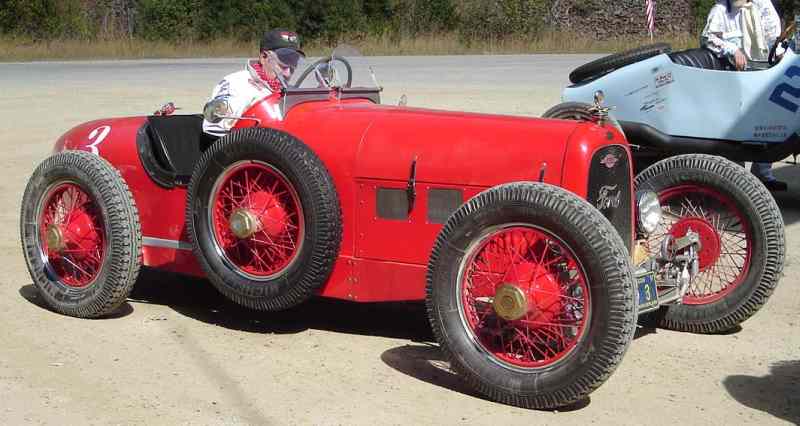

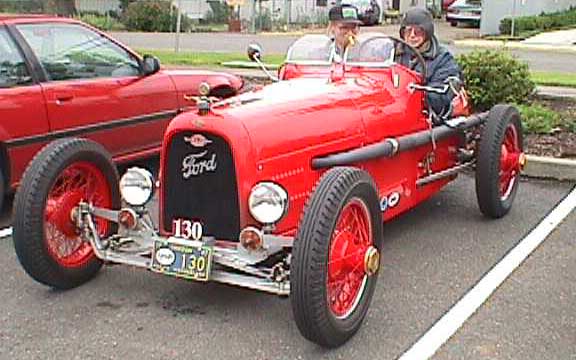

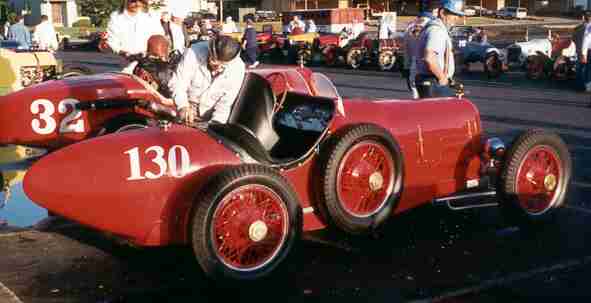

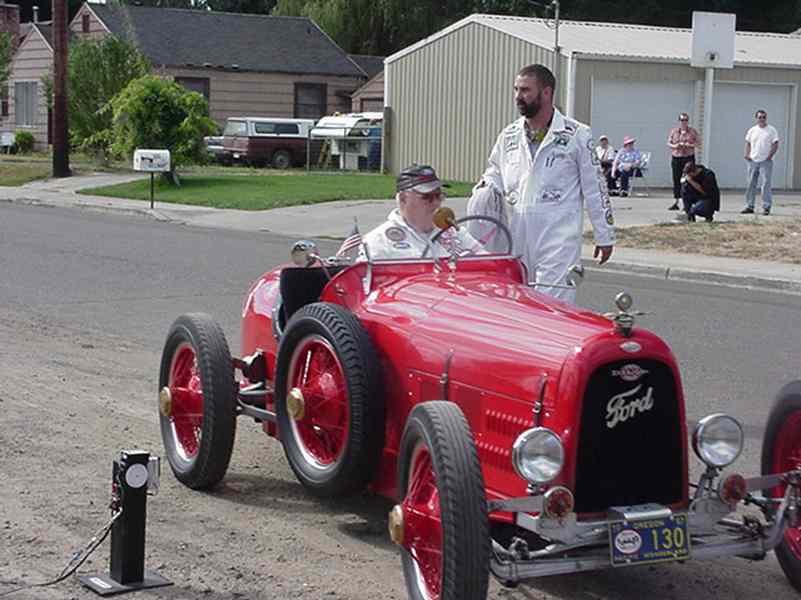

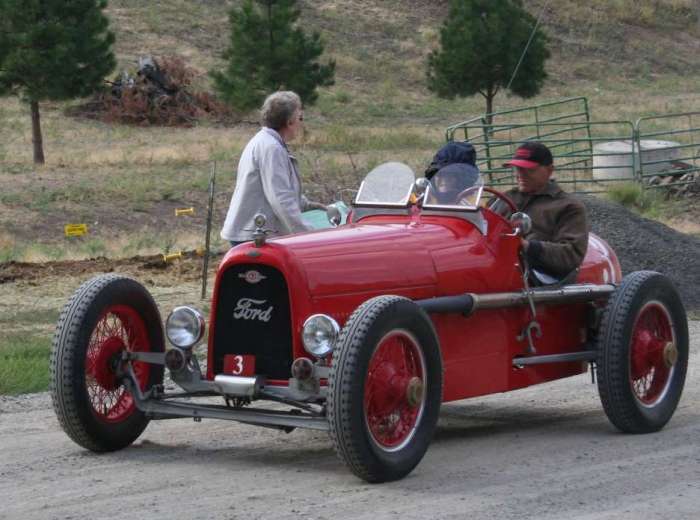

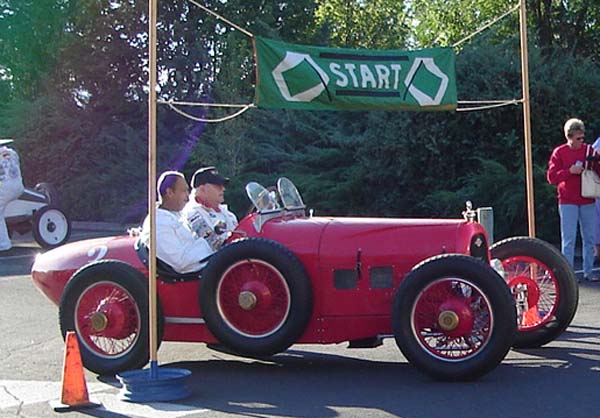

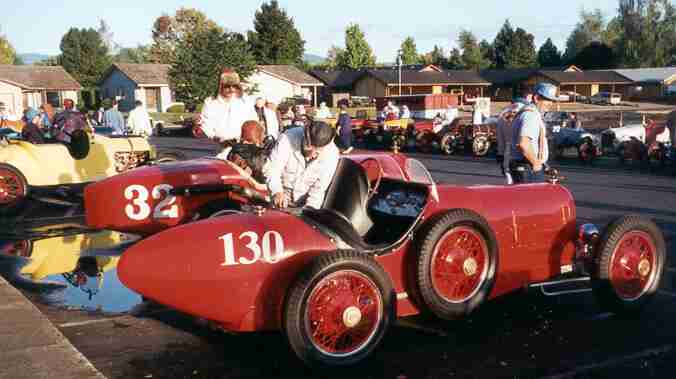

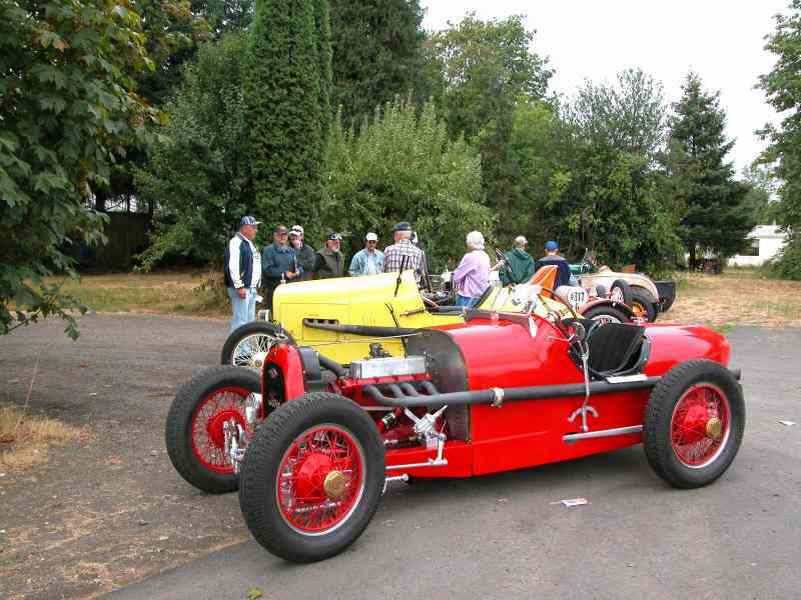

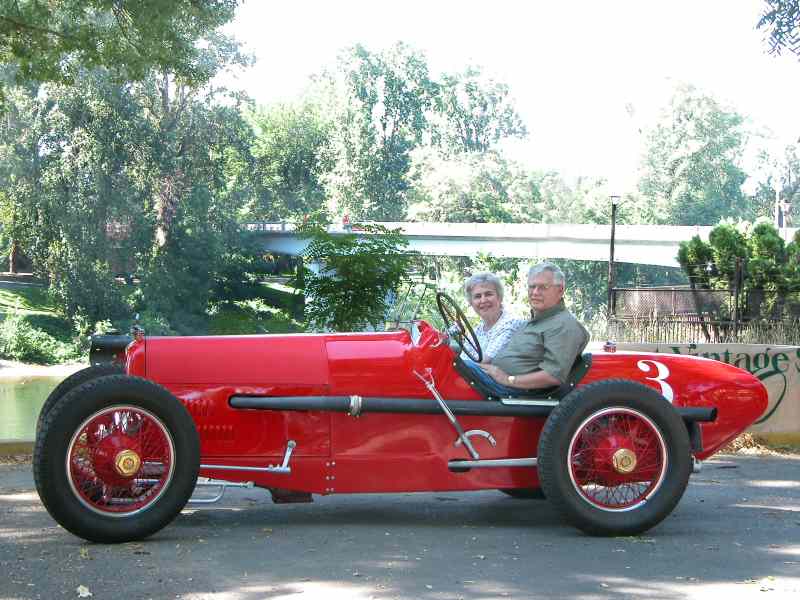

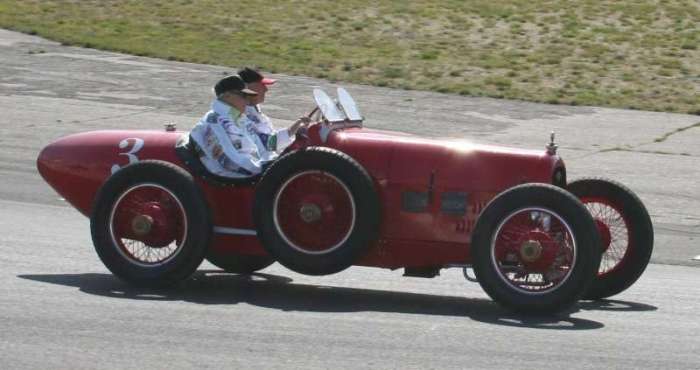

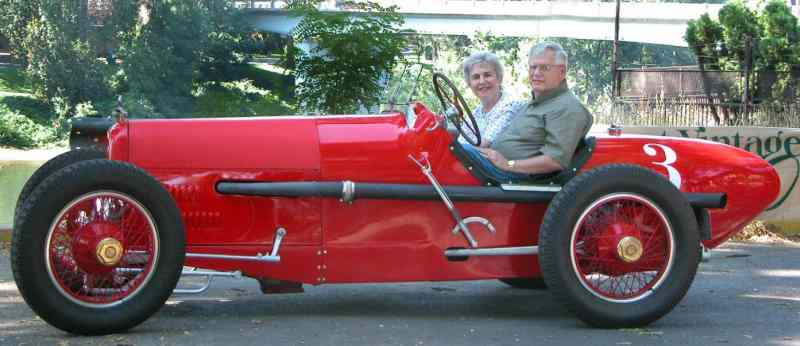

#130, now #3, was designed and built by Floyd Hughes of Colfax, California. I purchased the car in November, 1992 and thus began a continuing love/ hate relation with my favorite toy. The car originally had a Roof Type A 16 valve OHV head with a rocker arm assembly designed and built by Hughes. I replaced the Roof in 2001 with one of the Rajo Model B OHV heads that were made in Australia several years ago. It originally had dual Weber DCOE9 carburetors. This was far too much carburetion and I have experimented with various carburetors before settling on a single Stromberg 97.

Thank You for the Photos - Art & Helen Reichlin - Beryl Brown - David Howie - Don Shreve - Jeff Richardson - Jillian Caples - John Black - Julian Caples - Lee Burgess - MadMax - Click to Enlarge

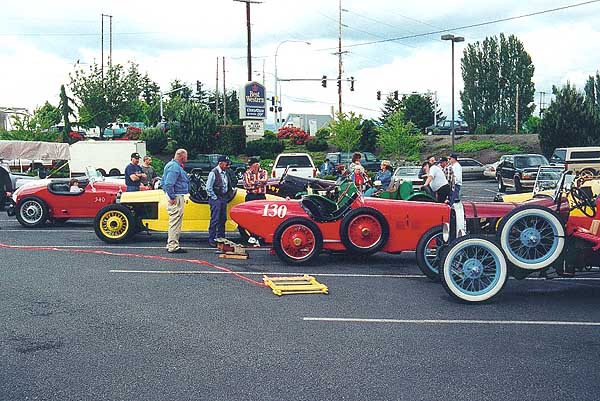

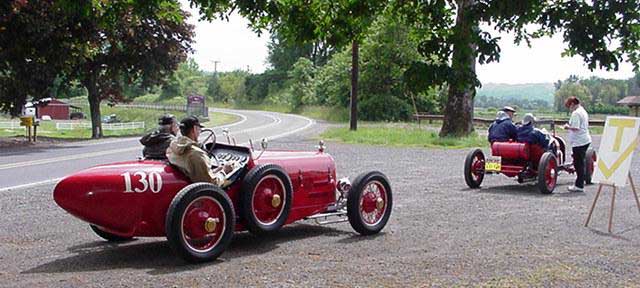

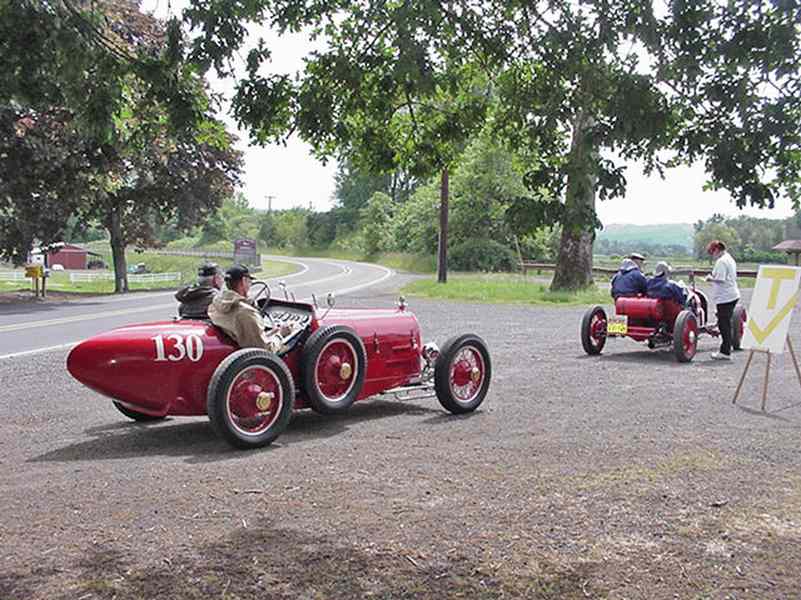

The car has participated in almost all NW Vintage Speedster events since acquiring it in 1992. I look forward to driving #130 in future NWVS events until one or the other of us breaks down. A fun car that is a joy to drive !!!

Model T frame, axles, springs, 1916 block & differential with standard gears

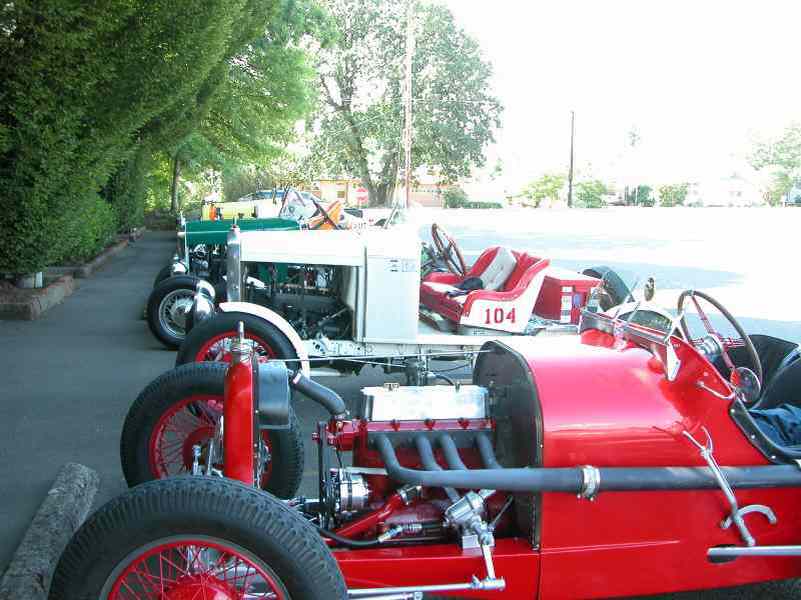

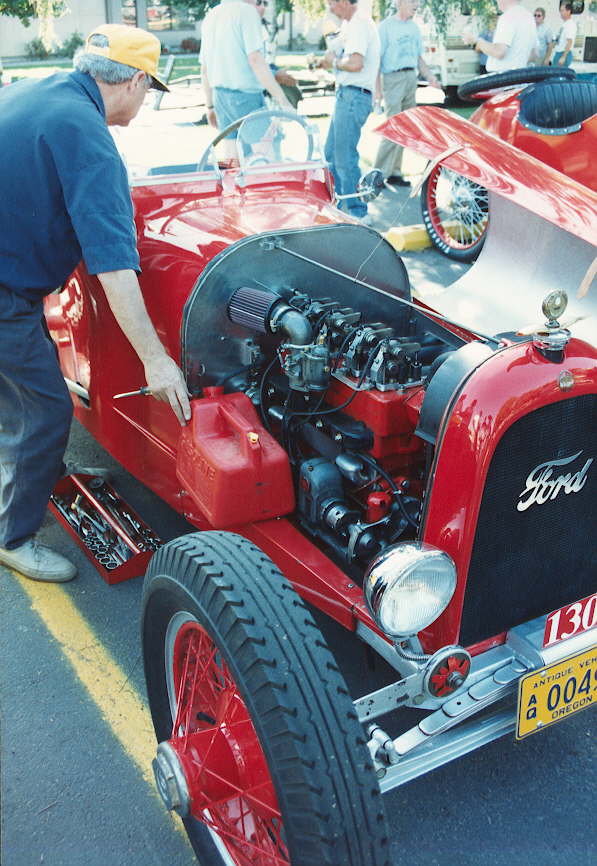

Rajo type B OHV head
Stromberg 97 carburetor
Bosch magneto ignition with Bosch 3 gear side drive
1967 Ford planetary tranny (C4 - don’t knock it till you’ve tried it)
Morton & Brett Speedway Poliform body (fiber makes you go faster)
Dayton #25 dentil drive 64 spoke wire wheels
1929 Model a crankshaft drilled for rod oiling
Aluminum pistons .030 over
Insert rod and main bearings
Full pressure oil system
T camshaft – De Long special grind
Alternator 12V
Whippet radiator & shell
Hartford friction shocks
Front lowering – drop axle, suicide bracket & reversed spring eyes
Rear lowering – Z’d frame & backing plates rotated ¼ turn to rear
Hydraulic rear brakes – ’79 Toyota PU
Corvair steering box
Water pump – early V8
