Miller 4-Cylinder DOHC #2
| | |||||||
| All Thumbnail Index | All Alphabetic Index | ||||||||
| Previous Engine | Next Engine | ||||||||
 | |||||||||
|
Block Manufacturer : Miller
Block Material : Aluminum Crankcase Cylinders : 4 Cubic Inches : 150.4 Bore : 3.406 Stroke : 4.125 Block Year : 1926 |
Head Manufacturer : Miller
Head Material : iron Cam : DOHC Cam Drive : Gear Driven Carbs : 2 Miller Updraft Carbs HeadYR : 1926 Era : | ||||||||
| Description :

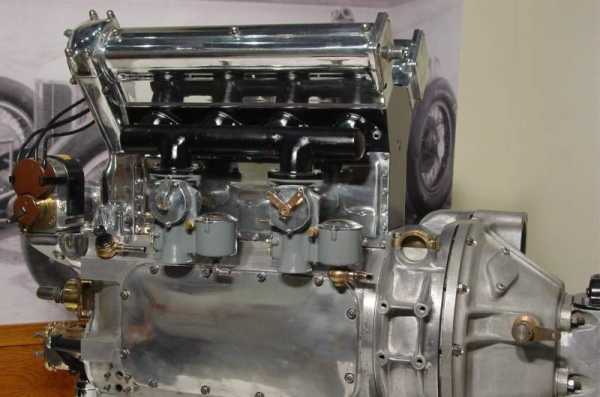

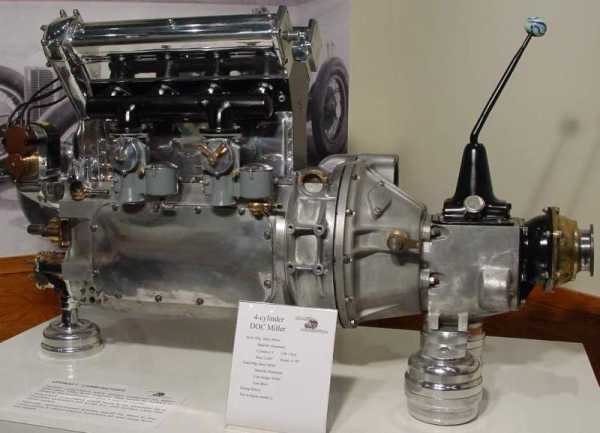

Updraft carburetors were always preferred on Miller (and later, Offy) fours. They could be tucked in close to the crankcase to give a narrow profile, while downdraft carburetors would have to be mounted on a manifold extended out to let the carburetor bodies clear the valve covers. For marine applications, upward-turned scoops would typically be fitted to the carburetors to direct engine backfires up and away from the bilges. | |||||||||
|
Please Email us if you know more about this Engine E003@museumofamericanspeed.com | |||||||||
