Duesenberg Race Engine
| | |||
| ModelAB Thumbnail Index | ModelAB Alphabetic Index | ||||
| Previous Engine | Next Engine | ||||
 | |||||
|
Block Manufacturer : Duesenberg Block Material : Cast Iron Cylinders : I-8 Cubic Inches : 244 Bore : Stroke : Block Year : 1930 |
Head Manufacturer : Duesenberg
Head Material : iron Cam : SOHC Cam Drive : Gear Driven Carbs : 2 Winfield “SR” Head Year : 1930 Era : Model A/B | ||||
| Description :
Fred Duesenberg built this engine for the 1930 racing season. Destroked the Duesenberg Model A engine to 244-c.i. (for higher revs), Developed an entirely new single overhead cam cylinder head for it, with: Desmodromic valve action, (i.e., the camshaft both positively opens and positively closes each valve). Modified porting and water jacketing for racing requirements. Spark plugs moved to a central position in the top of the head. Two of the eight Duesenbergs in the 1930 Indy 500 race had this new 244-c.i. engine; one of those finished in fifth place. | |||||
|
Please Email us if you know more about this Engine E045@museumofamericanspeed.com | |||||

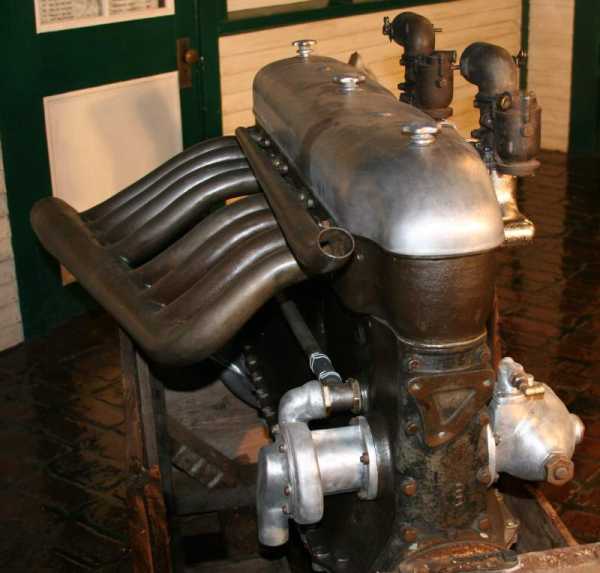

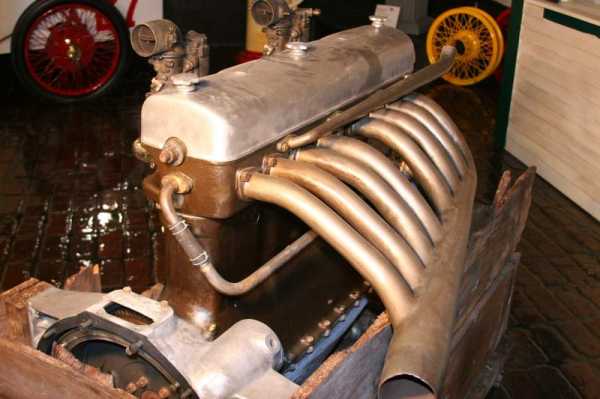

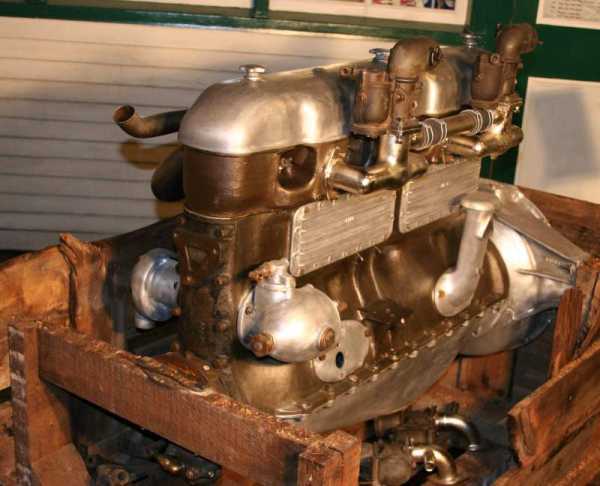

| Click on Thumbnails to Enlarge | |||||
|
|||||
